KOMADA Stacker

KOMADA Fully Powered Stacker

KOMADA Fully Powered Stacker


KOMADA Fully Powered Stacker


Specifications:

Product Code  EST 152-1527 EST 152-1530   EST 152-1536
 Drive unit Electrics
 Operator type Pedestrian
 Rated capacity (Q) kg 1500
 Load center distance (c) mm 500
 Load distance (x) mm 798
 Wheelbase (y) mm 1212

Weight

 Service weight (include battery) kg 595
 Axle loading. laden driving side/loading side kg 825 / 1270
 Axle loading. unladen driving side/loading side kg 450 / 145

 Types Chassis

 Tyre type driving wheels / loading wheels PU/PU
 Tyre size, driving wheels (diameter x width) mm Ø210 x 70
 Tyre size, loading wheels (diameter x width) mm Ø74 x 72
 Tyre size, caster wheels
(diameter x width)
mm Ø180 x 55
 Wheels, number driving, caster / loading (x=drive wheels) mm 1x +1/4
 Track width, front, driving side mm 531
 Track width, rear, loading side mm 405

Dimensions

 Height, mast lowered (h1) mm 1956 2106  2406
 Lift height (h3) + (h13) mm 2720  3020  3620
 Height, mast extended (h4) mm 3271  3571  417
 Height drawer in driving position min. / max. mm 750/ 1340
 Lowered height (h13) mm 85
 Overall length (l1) mm 1713
 Length to face of fork (l2) mm 563
 Overall width (b1) mm 792
 Fork dimension (s/ e/ l) mm 60/ 170/ 1150
 Fork carriage width mm 680/ 770
 Distance between fork-arms mm 570/ 685
 Ground clearance, carrier of wheelbase mm 25
 Aisle width for pallets 1000 x 1200 crossways mm 2224
 Aisle width for pallets 800 x 1200 lengthways mm 2158
 Turning radius mm 1390

 Performance Data

 Travel speed, laden / unladen km/h 4.2/4.5
 Lifting speed, laden / unladen m/s 0.08/ 0.14
 Lowering speed, laden / unladen m/s 0.11/ 0.10
 Max. gradeality, laden / unladen % 3/10
 Service brake type Electromagnetic

Electric Engine

 Drive motor rating S2 60 min kW 0.75
 Lift motor rating at S3 15% kW 2.2 (kW)
 The maximum allowed size battery mm 250 x 165 x 210
 Battery voltage/ nominal capacity K5 V/Ah 2x 12/85
 Battery weight kg 2x24

Additional Data

 Type of drive unit DC
 Steering type mechanical
 Sound pressure level at te drive's ear db (A) 74

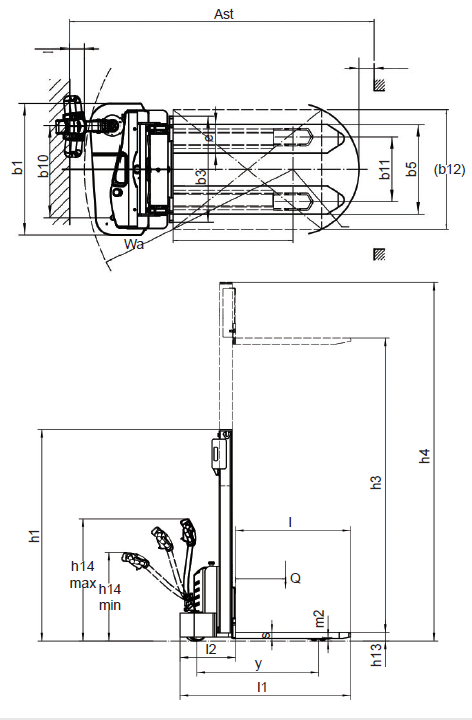

The drawing of Fully Powered Stacker :





KOMADA Fully Powered Stacker -EST152-1527, EST 152-1530 , EST 152-1536

Strong Chassis
The side impact beam, plates, and boxes make the chassis stronger and can greatly reduce stress and deformation caused by heavy load.


Rigid Mast
The rigidity of the mast is greatly improved by its beam structure to provide smooth lifting and stacking for daily operation.


Easy Operation
The extra-long and offset tiller with the crawl speed button provides EST152 a better visibility and nimble maneuverability when operating in tight space.


Efficient Hydraulic System
High quality hydraulic pump ensures very little noise, maximum efficiency,durability and shortens lifting time.
