KOMADA Fully Auto Stacker

Company Overview

TTF Marketing Holdings Sdn. Bhd. (407754-H) is a leading Racking Systems & Office Systems pioneer in Malaysia. In order to achieve a world-class standard of quality, we heavily invest in modern types of machinery and the latest sophisticated technology. We provide a full range of products such as Light Duty Racking Systems, Medium Duty Racking Systems, Heavy Duty Racking Systems, Steel Platforms, Mezzanine Floors, Selective Pallet Racking, Gondola Shelving, and Office Systems applicable to all market segments.

Quality Assurance

TTF Marketing Holdings Sdn. Bhd. (407754-H) stresses on using Computer-Aided-Design (CAD) and Computer-Aided-Engineering (CAE) software for design and modelling capacity to ensure accuracy and quality for our clients and customers.TTF also incorporates the Finite Element Analysis (FEA) to determine the factor of safety and deflection of the structure.

Awards

As an endorsement of our product quality and the desire to achieve ISO9001:2000 status, we annually subject our products to a stringent SIRIM QAS compression test. All our racking shelves were subjected to extreme load tests and the highest SIRIM approval ratings. We are proud to say that our products are next to none in the competitive industry of racking systems.

KOMADA Stacker

KOMADA Fully Powered Stacker

Product Code		ES12-12WAi
Drive Unit		Battery
Operation Type		Pedestrian

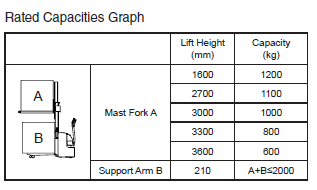

Rated capacity (Q)	kg	1200
Load centre distance (c)	mm	600
Load distance, centre of drive axle to fork (x)	mm	701
Wheel Based (y)	mm	1275
Weight
Service weight (include battery)	kg	940
Axle loading, laden driving side/loading side	kg	735/1405
Axle loading, unladen driving side/loading side	kg	640/300
Type Chassis
Tyre type driving wheels / loading wheels		PU/PU
Tyre size, driving wheels (diameter x width)	mm	Ø230 x75
Tyre size, loading wheels (diameter x width)	mm	Ø85x 70
Tyre size, caster wheels (diameter x width)	mm	Ø130x55
Wheels, number driving, caster/loading (x=drive wheels)	mm	1x +1/4
Track width, front, driving side	mm	538
Track width, rear, driving side	mm	370

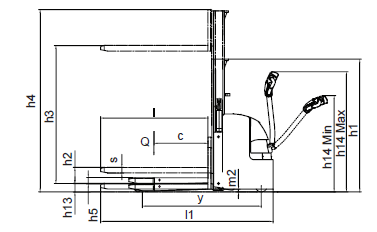

Dimensions
Height, mast lowered (h1)	mm	1970
Free lift (h2)	mm	100
Lift height (h3)	mm	2915
Height, mast extended (h4)	mm	3529
Initial lift (h5)	mm	120
Height drawbar in driving position min./max. (h14)	mm	715/1200
Lowered height (h13)	mm	95
Overall length (l1)	mm	1847
Length to face of forks (l2)	mm	697
Overall width (b1)	mm	800
Fork dimensions (s/e/l)	mm	60 x 190 x 1150
Fork carriage width (b3)	mm	680
Outside width of the forks (b5)	mm	560
Ground clearance, center of wheelbase (m2)	mm	30

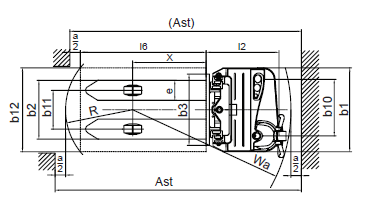

Aisle width for pallets 1000 x 1200 crossways (Ast)	mm	2378
Aisle width for pallets 800 x 1200 lengthways (Ast)	mm	2350
Turning radius (Wa)	mm	1510
Performance Data
Travel speed, laden/ unladen		0.13/0.1
Max. gradeability, laden/ unladen		8/16
Service brake type		Electromagnetic
Electric Engine
Drive motor rating S2 60 min			kW	1.27
Lift motor rating at S3 15%			kW	0.84
The maximum allowed size battery			mm	650 x 150 x 625
Battery voltage/nominal capcity K5			V/Ah	24/150
Battery weight			kg	140
Addition Data
Type of drive unit			AC
Steering type			mechanical
Sound pressure level at the driver's ear		dB (A)	74
