KOMADA Fully Powered Hand Pallet Truck - CBD15-E/CBD20-E


 Specifications :

Product Code  CBD15-E     CBD20-E
Drive Type  Electric
Manner of operation Tramp type
Load capacity (Q) kg  1500 2000
Load centre (c) mm 600

Distance between fork backrest and front (x)

mm 944
Wheel Based (y)  mm 1243
Service weight (without battery) mm 137 146
Tire material PU
Driving Wheel  mm  Ø210 x70
Bearing Wheel  mm  Ø80x 60
Qty of wheel, Front / Rear (x=driving wheel)

  1x/4

Tread (b11) mm

535

Lifting height (h3) mm 200
Height of handle in operation position (h14) mm 740/1160
Lowered fork height (h13) mm

85

Overall length (l1) mm 1603
Body length (l2) mm

453

Overall width (b1 / b2) mm 685
Fork size (s/e/l) mm 50/150/1150
Fork width (b5) mm 685
Ground clearance under mast (m2) mm 35
Aisle width for pallets 1000*1200 crossways
(Ast)
mm 1804
Aisle width for pallets 1000*1200 lengthways
(Ast)
mm 1854
Turning radius Wa

1398

Driving speed (load/unload) km/h 4.2/4.5
Maximum gradeability (load/unload) % 5/10
Brake type Electromagnetic brake
Drive motor kW 0.75
Lift motor kW 0.8
Battery (according to DIN 43531/35/36) No
Battery voltage / rate capacity V/Ah  24/20 24/30 24/40 48/15 48/20
Battery weight (±5%) kg 5.5 7.0 8.2 7.0

8.2

Type of drive control DC
Noise level  dB(A)  ≤70
Steering type

Mechanical

*The product colours depends on stock : Red / Yellow

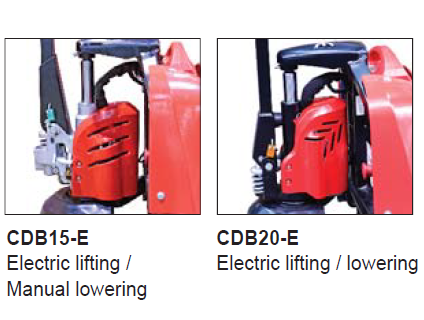

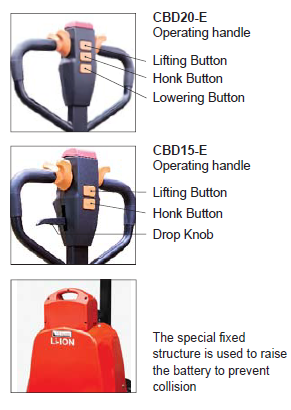

The difference between CBD15-E & CDB20-E
