Heavy Duty Racking System
TTF Mould Tool Rack
TTF Mould Tool Rack

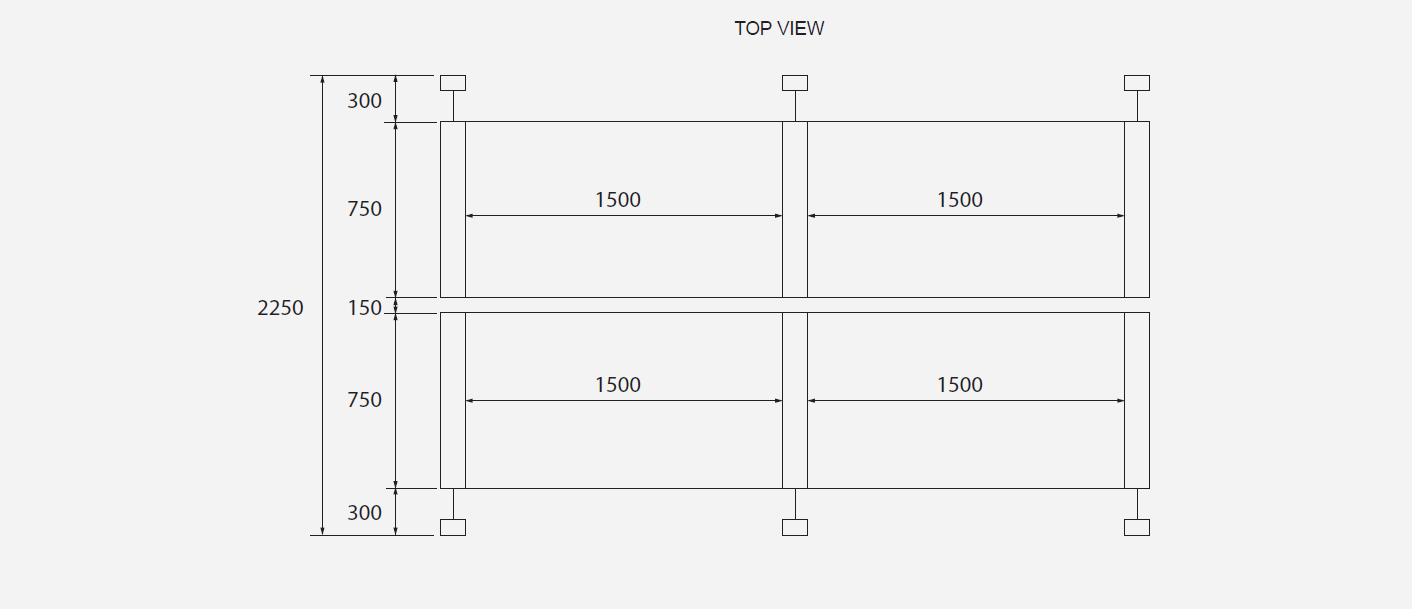

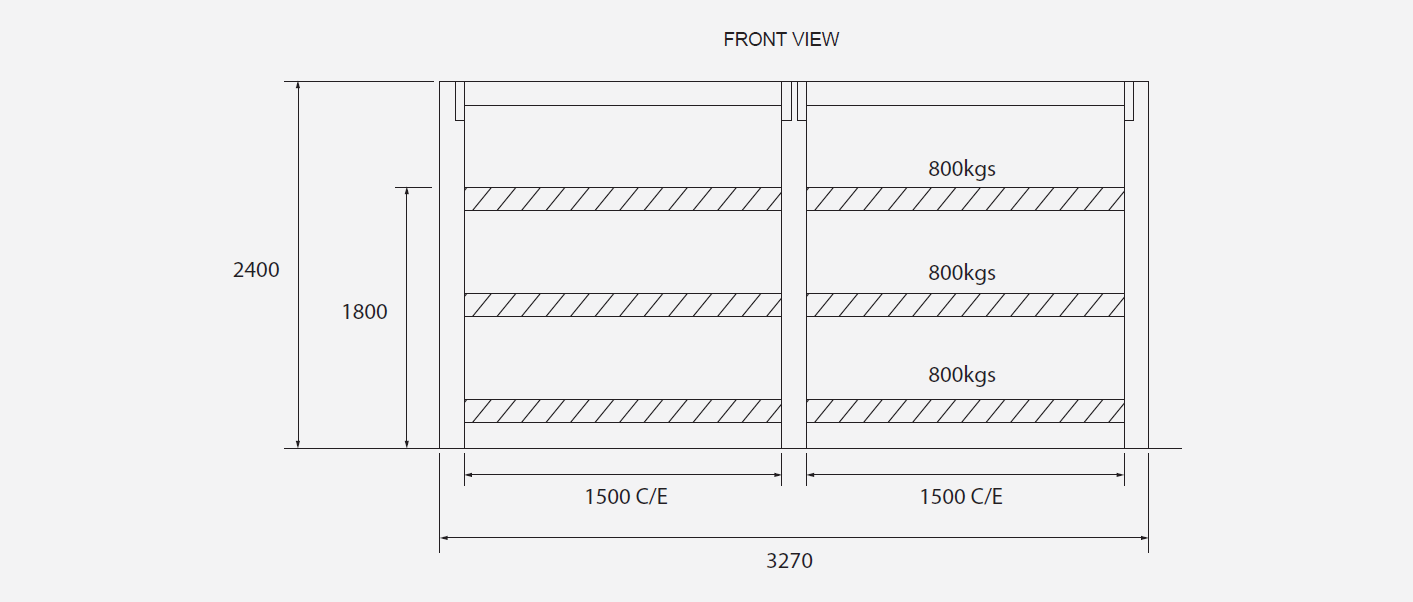

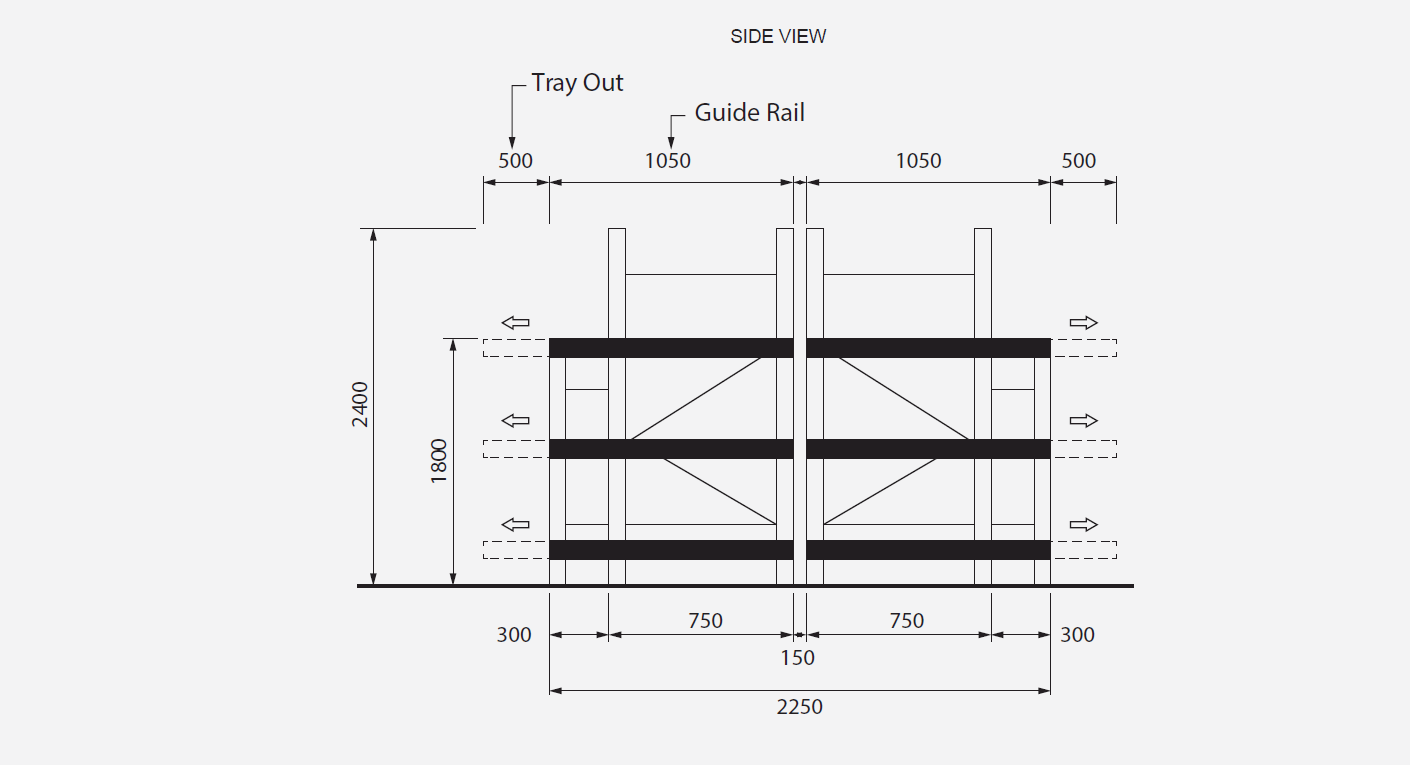

Specifciations :
Dimension : Height x Depth x Length x Shelve Levels
Description | |
Height (mm) | 800 / 2400 |
Depth (mm) | 750 + 300 x 2 unit back to back |
Length (mm) C/E | 1500 |
Movable Shelf (mm) | 770 x 1490 (3 Movable) |
Shelf Level | 4 |
Rack Outer Depth (mm) | 2250 |
Rack Outer Length (mm) | 3270 |
Loading Capacity (kg) | 800 kg UDL / Level |
Colour | Frame Set : Beam: |
*Sizes is available for customize*
TTF Mould Tool Rack
TTF Mould Tool Rack are perfect for storing heavy duty goods such as modules, motor and tools. The mould tool racks have one-way pullout shelve along with sheet base panel for making the warehousing much simple. Each rack loading capacity is 800kg UDL / level .
