KOMADA Hand Pallet Truck

KOMADA Fully Powered Hand Pallet Truck

Product Code		EPT20-20WAi
Drive Unit		Electrics
Operation Type		Pedestrian
Rated capacity (Q)	kg	2000
Load centre distance (c)	mm	600
Load distance (x)	mm	905
Wheel Based (y)	mm	1441
Weight
Service weight (include battery)	kg	625
Axle loading, laden driving side/loading side	kg	910/1715
Axle loading, unladen driving side/loading side	kg	420/205
Type Chassis
Tyre type driving wheels / loading wheels		PU/PU
Tyre size, driving wheels (diameter x width)	mm	Ø230 x75
Tyre size, loading wheels (diameter x width)	mm	Ø85x 70
Tyre size, caster wheels (diameter x width)	mm	Ø85x 48
Wheels, number driving, caster/loading (x=drive wheels)	mm	1x +2/4
Track width, front, driving side	mm	498
Track width, rear, driving side	mm	366

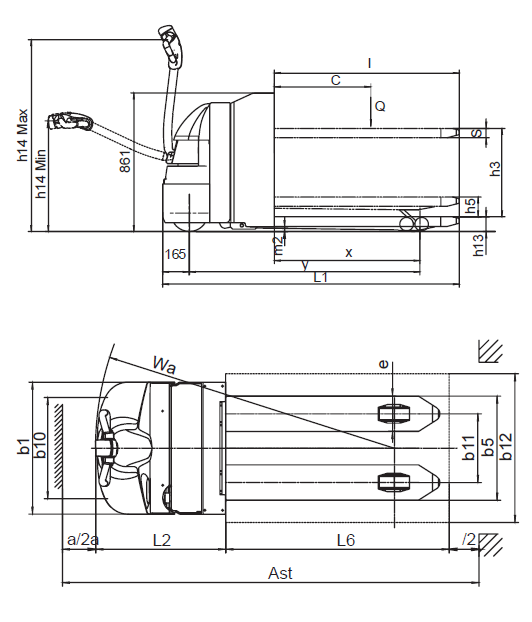

Dimensions
Lift (h3)	mm	540
Initial lift (h5)	mm	120
Height drawbar in driving postition min. max. (h14)	mm	715/1200
Lowered Height (h13)	mm	95
Overall length (l1)	mm	1850
Length to face of forks (l1)	mm	694
Overall width (b1/b2)	mm	710
Fork Dimension (s/e/l)	mm	60/190/1150
Outside width of the forks (b5)	mm	560
Ground clearance, center of wheelbase (m2)	mm	30
Aisle width for pallets 1000 x 1200 crossways (Ast)	mm	1913
Aisle width for pallets 800 x 1200 lengthways (Ast)	mm	2113
Turning radius (Wa)	mm	1615
Performance Data
Travel speed, laden/ unladen	km/h	5/5.5
Support arm lifting speed, laden/ unladen	m/s	0.024/0.25
Mast lifting speed, laden/ unladen	m/s	0.07/0.121
Support arm lowering speed, laden/ unladen	%	0.050/0.032
Mast lowering speed, laden/ unladen		0.13/0.1
Max. gradeability, laden/ unladen		8/16
Service brake type		Electromagnetic
Electric Engine
Drive motor rating S2 60 min			kW	1.27
Lift motor rating at S3 15%			kW	0.84
The maximum allowed size battery			mm	650 x 150 x 625
Battery voltage/nominal capcity K5			V/Ah	24/150
Battery weight			kg	140
Addition Data
Type of drive unit			AC
Steering type			mechanical
Sound pressure level at the driver's ear		dB (A)	74
